[Rovernet] Update on "burning fingers"

[Lance La Certe]

Hey Vern,

Thanks so much for finding this.  I will put it in my manual, as I clearly didn't have this page.   Complete serendipity that I decided to pull that wire as part of running down all of the 'obvious' purple/black wires related to the battery control fuse, given that it was purple/yellow

Lance
















________________________________
From: Rovernet <rovernet-bounces at rovernet.org> on behalf of Vern Inkspot via Rovernet <rovernet at rovernet.org>
Sent: Thursday, July 24, 2025 5:53 PM
To: Rovernet <rovernet at rovernet.org>
Cc: Vern Inkspot <vern at inkspotco.com>
Subject: Re: [Rovernet] Update on "burning fingers"

Hi Lance

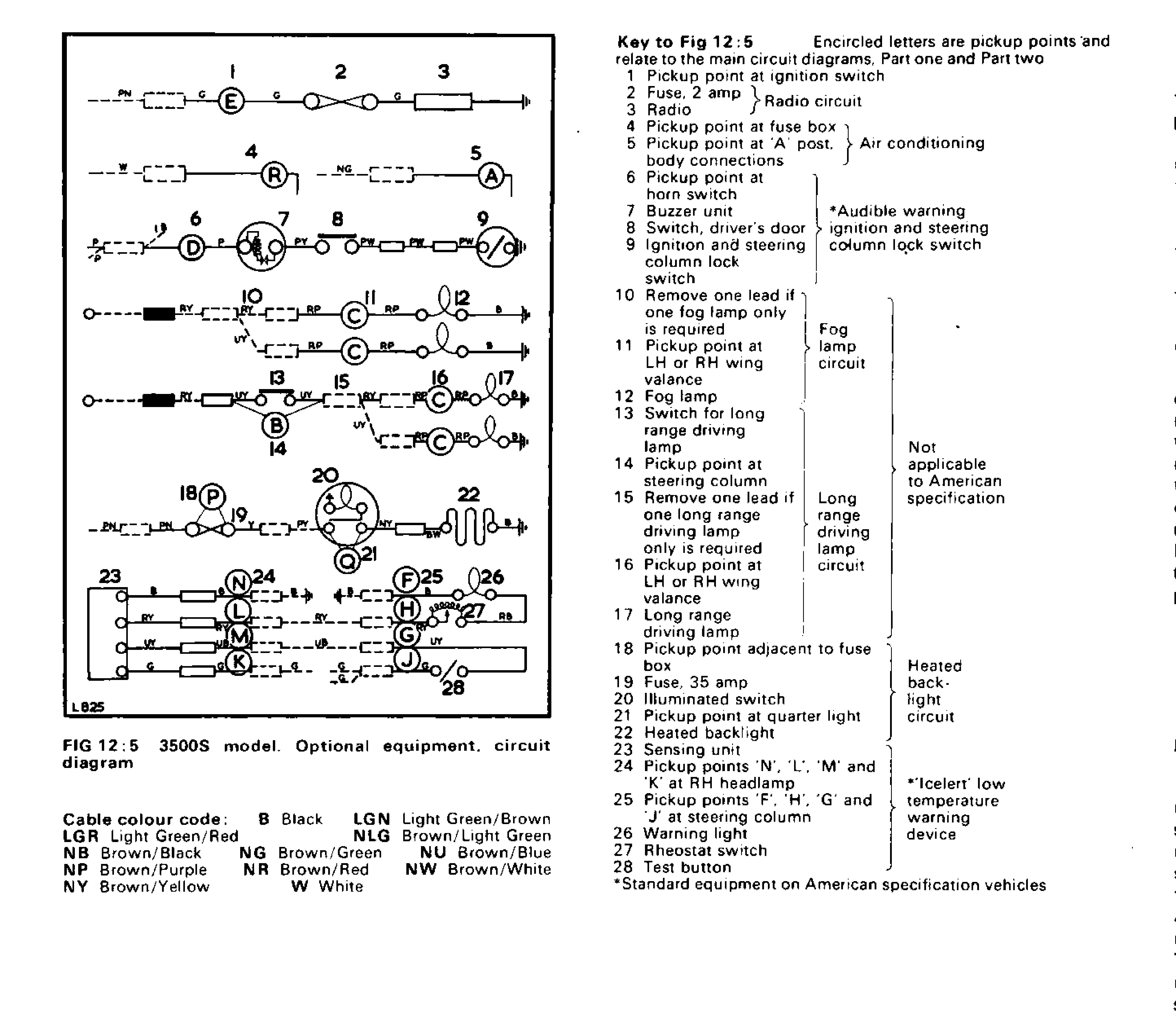

I found the buzzer diagram, it’s in an “optional equipment” diagram, item 6 through 9.

Yours
Vern

[Screenshot 2025-07-24 at 4.48.21 PM.png]

On Jul 23, 2025, at 2:43 PM, Lance La Certe via Rovernet <rovernet at rovernet.org> wrote:

In case this might be of help to someone in the future
'70 3500S NADA

Very hot, blown #1 fuse "Battery control" circuit.

The wires coming out from the fuse terminal (versus into the terminal, i.e., brown, power wire) are essentially all purple with a black stripe.

Wiring diagram shows this fuse involves: map light, interior dome light, bonnet light, boot light, horns, and their respective switches (including all of the switches inside each door connected, e.g., to the dome light),  clock, and cigarette lighter.

NONE of these had a short!!!!!

What I decided to disconnect because it was convenient while everything on and under the dash was apart,  but had a purple/yellow wire, was the door ajar alarm.  This had worked intermittently throughout the years.   It was the culprit.  The buzzer had shorted internally.

I went back to my wiring diagram for the NADA model three times and could never find any evidence of wiring for that device.   It wasn't even listed.

Lance
